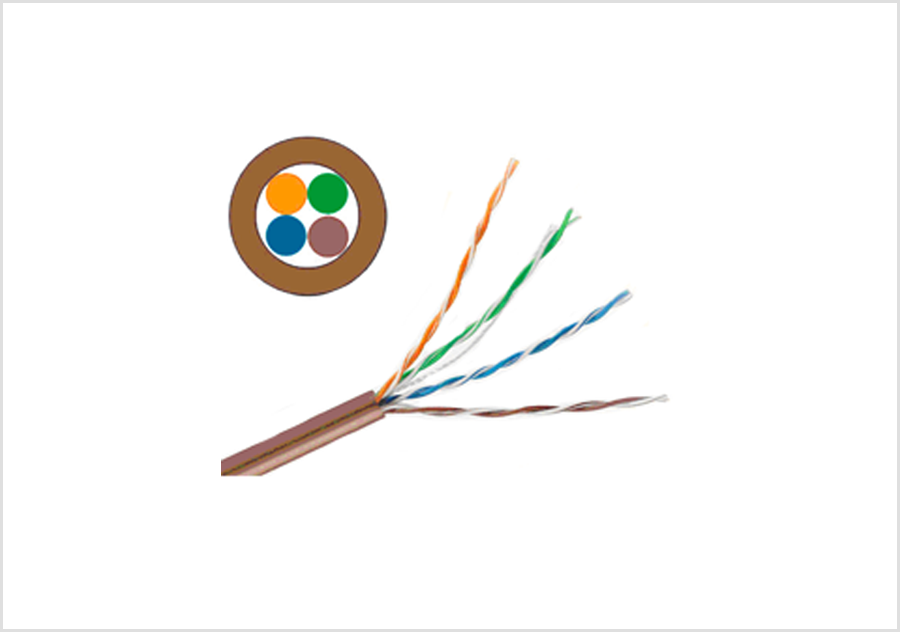

CAT3-UTP 4pairs

CAT3-UTP 4pairs
Description:
  • Rated Temperature: 60-90°C
  • Standard: UL444,TIA/EIA568C.2
  • AWG: 24-26
  • Conductor: Solid Bare Copper
  • Insulation: HDPE
  • Twisted Pairs: 2-4(per request)
  • Jacket: PVC
  • Rip cord: Per request
Application:
  • 100 Base-T4
  • 100 Base-T
  • Availability: In Stock
Availability: In Stock



Description
Description:
Rated Temperature: 60-90°C
Standard: UL444?TIA/EIA568C.2
AWG: 24-26
Conductor: Solid Bare Copper
Insulation: HDPE
Twisted Pairs: 2-4(per request)
Jacket: PVC
Rip cord: Per request
Application:
100 Base-T4
100 Base-T
Electrical Characteristic:
1.0˜16.0MHz Impedance(ohms) 100±15
20°C Conductor D.C, Resistance(ohms/km) ≤93.8
Unbalance of Resistance(%) ≤1.0
Packing:
305M/pull box(per request)
Electrical Characteristics:
FREQUENCY Impedance RL Attenuation NEXT
(MHZ) (Ω) (≥dB) (DB/100M) (DB/100M)
1 100±15 11.3 4.7 41.3
4 50.0 6.1 32.5
8 9.5 8.5 27.9
10 9.4 8.5 27.9
16 8.7 13.1 24.3
